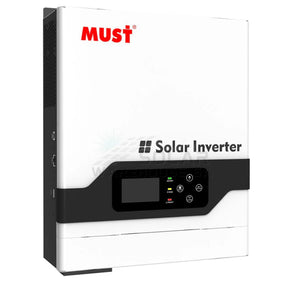

Must 1KW 12v 1000W MPPT VPM Ⅱ Series PV18-1012 Solar Inverter

Must 1KW 12v 1000W MPPT VPM Ⅱ Series PV18-1012 Solar Inverter

This is a multi-function inverter/charger, combining functions of inverter, MPPT 40A/60A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on

Features:

■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

■ Bult in MPPT 40A/60A solar charge controller

■ Combining solar system, AC utility, and battery power source to supply continuous power

■ Overload, short circuit and Deep discharge protection

■ Cold start function

■ Support USB, RS485, CAN monitoring function

■ WIFI remote monitoring (optional)

■ Compatible to generator

■ PV/ AC activation function

■ Smart battery pack BMS communication function (CAN Port)

Inverter Mode:
Rated Power: 1000VA/1000W
DC Input: 12VDC 95A
AC Output: 230VAC, 50/60Hz, 4.4A

AC Charger Mode:

AC Input : 230VAC 50/60Hz 5.9A
DC Output : 13.8VDC 20A

Solar Charger Mode:

Solar Charger Mode:
Rated Current:45A/600W
System Voltage: 12VDC
MPPT Voltage Range: 15-75 VDC
Max Solar Voltage: 105VDC
Max. Charge Current:65A

1 Year Warranty

Package Dimensions (W*H*D) 299 X 392 X 184mm

Machine Dimensions (W*H*D) 224 X 337 X 98mm

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
