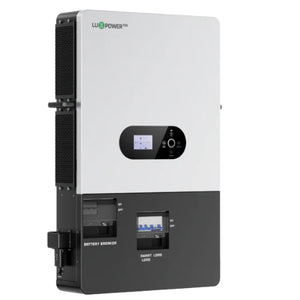

Luxpower 14kW Single Phase Eco Hybrid Inverter (SNA14000)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Luxpower 14kW Single Phase Eco Hybrid Inverter (SNA14000)
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
General Data
• 2 MPPT with 4 Strings, Maximum 24kW PV input
• Maximum Charging / Discharging Current 250A
• Off-Grid application with 12kW Output Power
• Dual AC Ooutput Ports for multiple load connections
• Integrated Load and Battery Breaker
• PV, AC & Generator wake up Battery
• Supports up to 16 Units in Parallel
• Dedicated Generator Port
• Up to 19.2kW Gen / AC Coupling Input
• Auto Generator Start and Stop control
General
- Model: SNA 14000 Eco Hybrid
- Battery voltage: 48VDC.
Features:
- 2 MPPTs with 4 strings, Max. 24kW PV input
- Max. charging and discharging current: 250A
- Off-grid application for high demand with 12kW output power
- Dual AC output ports for multiple load connections
- Separate GEN port
- -Up to 19.2kW Gen/AC coupling input
- -Auto generator start and stop control
- Integrated Design with Load and Battery Breaker
- PV or AC or Generator wake up battery
Inverter Output
- Waveform: Pure Sinewave
- Rated Power: 14000W
- Parallel Capability: Yes
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
- Surge Power: 24000w
- Efficiency (Peak): 93.5%
- Transfer Time: <10ms @ Single and Parallel
Solar Charger
- Maximum PV Array Power: 24000W.(12000w per MPPT)
- 2 MPPT Controllers with 2 Inputs each
- MPPT Range @ Operating Voltage: 120VDC ~44O VDC.
- Maximum PV Array Open Circuit Voltage: 480VDC.
- Start Up Voltage: 100vdc
- Maximum Efficiency: 98%.
- Maximum Solar Charge Current: 35A/35A.
AC Charger
- Charge Current: 250A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
- Frequency Range: 50Hz/60Hz (Auto sensing)
Build in BMS (Battery management System)
Wifi Remote Monitoring
Flexible Working Modes with settable charge and load power supply priority
Support Solar and AC take the load jointly.
Comes with a CT clamp to control your essentials and non-essential loads like a full Hybrid Inverter
