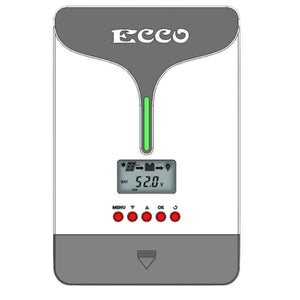

Ecco 80A MPPT Solar Charge Controller 12/24/48V TD4815F

Ecco 80A MPPT Solar Charge Controller 12/24/48V TD4815F

FEATURES

Tracer Dream F Series controller is based on Multi phase synchronous rectification technology and advanced MPPT control
algorithm, adopt co-negative design, with LCD displaying running status. The MPPT control algorithm can minimize the
maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum
energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by
20%-30% compared with a PWM charging method.

-Advanced MPPT technology, with efficiency no less than 99.5%
-Three phases synchronous rectification techology
-Maximum DC/DC conversion efficiency of 98%
-Common Negative Design
-Support the lead-acid,gel, flooded with the needed Temp
-Support lithium batteries start from solar panel
-BAT 52.0 Support parameters setting via the iConnect App
-Fan cooling solar controller are cooled by using fans
-Optional external WIFI or Bluetooth
-LCD display with back light
-RJ45 port

Specifications :

• Rated Voltage 12/24/48v
• Rated Current 80A

• MAX PV Input Voltage 150V
• MAX PV Input Power 1000W (12V) - 2100W (24V) - 4200W (48V)

Inside the Box

1 x 80A MPPT Solar Controller

1 x User manual Book
