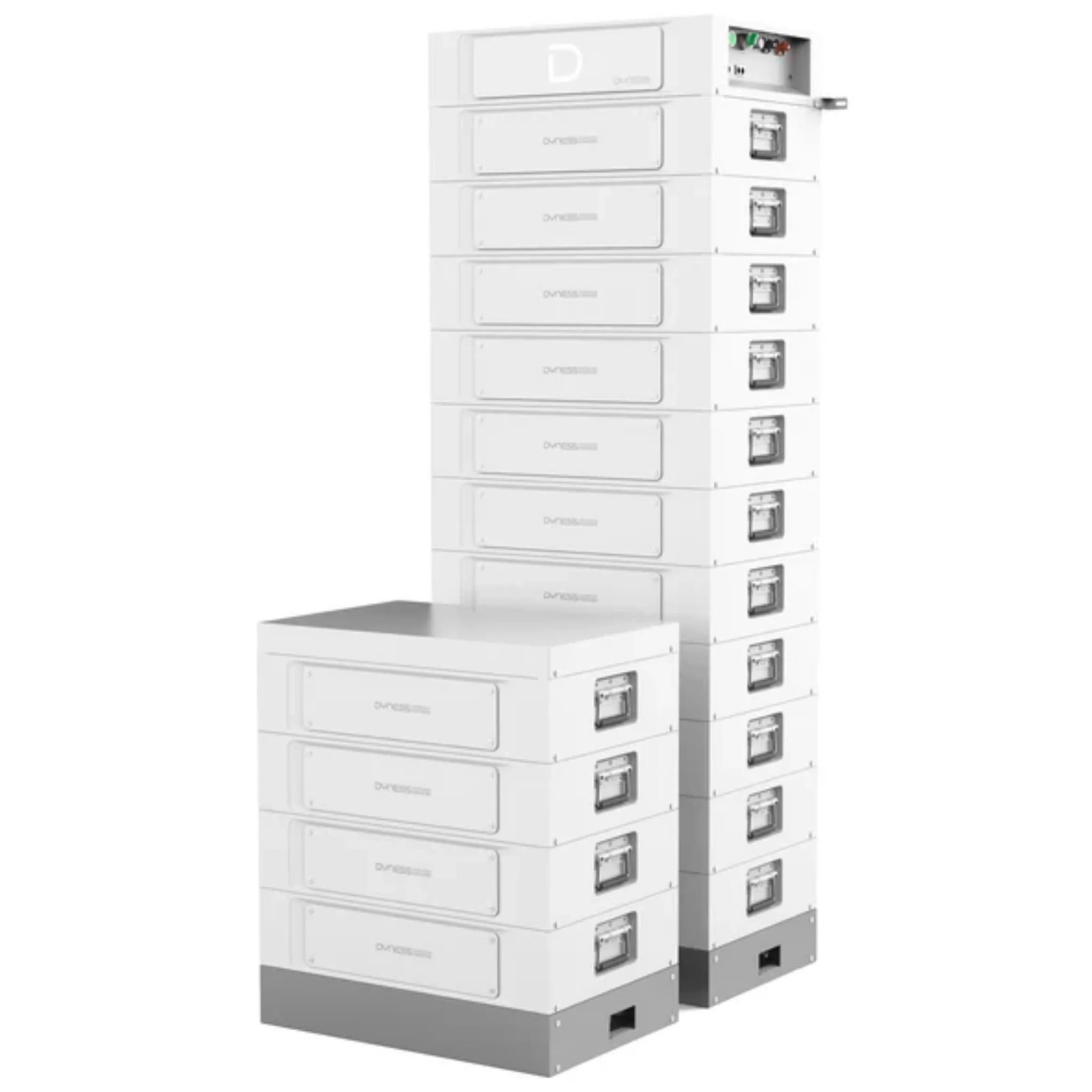

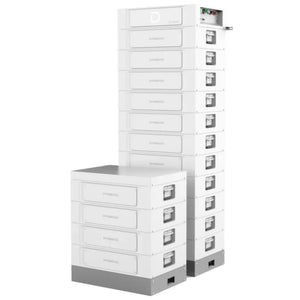

Dyness Stack100 High Voltage Battery 60Kwh
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Dyness Stack100 High Voltage Battery 60Kwh
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
Dyness STACK100 60kWh
12 x Dyness S51100 Stackable batteries
1 x Dyness BDU (Control box)
The Dyness STACK100 energy storage system is widely used in energy storage sector. It adopts modular design and can be used for residential and C&I applications. The reliable LiFeP04 technology ensures maximum safety and a longer life cycle
-
Flexible Expansion
Up to 12 clusters in parallel, 15KWh--921KWh capacity -
Ultra Safe
Intelligent fire extinguishing system, react within 5 seconds. - 1C Rate
Suitable for grid frequency regulation, charging stations and other scenarios, cost saving. - Easy Installation
0 wiring, rackless free stacking, plug-and-play, one cluster installation in 30min. - Automatic Self-heating
-20°C to 55°C operating temperature (optional)

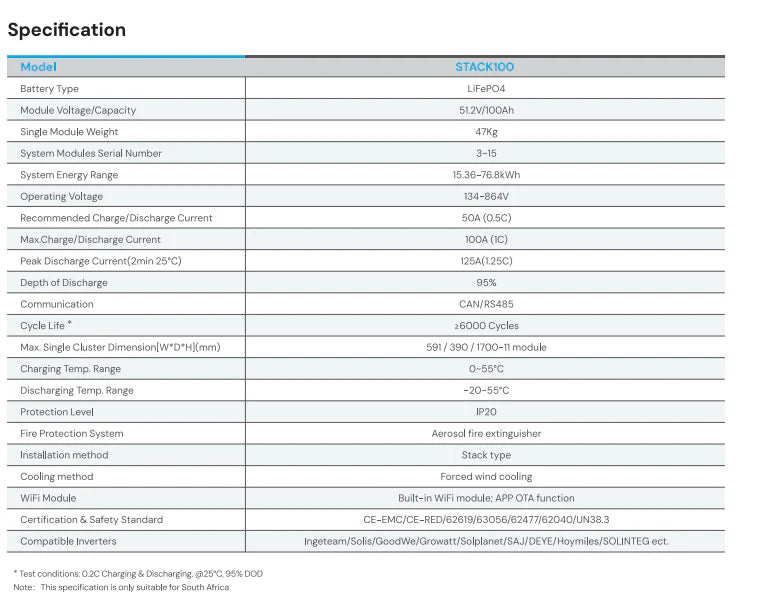

Technical Specifications
| Product Model |
STACK100 |
| Battery Module Type |
LiFePO4 |
| Module Voltage/Capacity |
51.2V/100Ah |
| System Energy Range |
15.36-76.8kWh |
| Cycle Life |
≥8000 cycles / 10 Years |
| Signal Module Weight |
47Kg |
| Max. Single Cluster Dimension |
591*390*1700mm |
