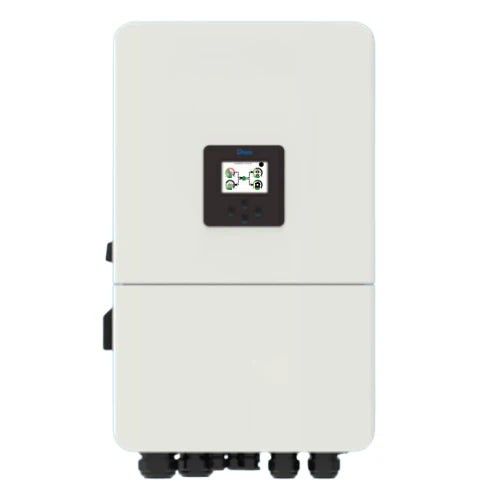

Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

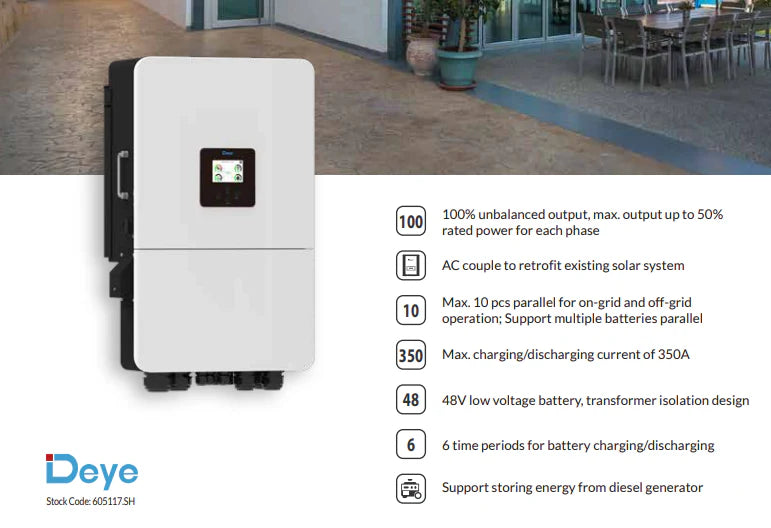

100% unbalanced output, max. output up to 50%
rated power for each phase
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator

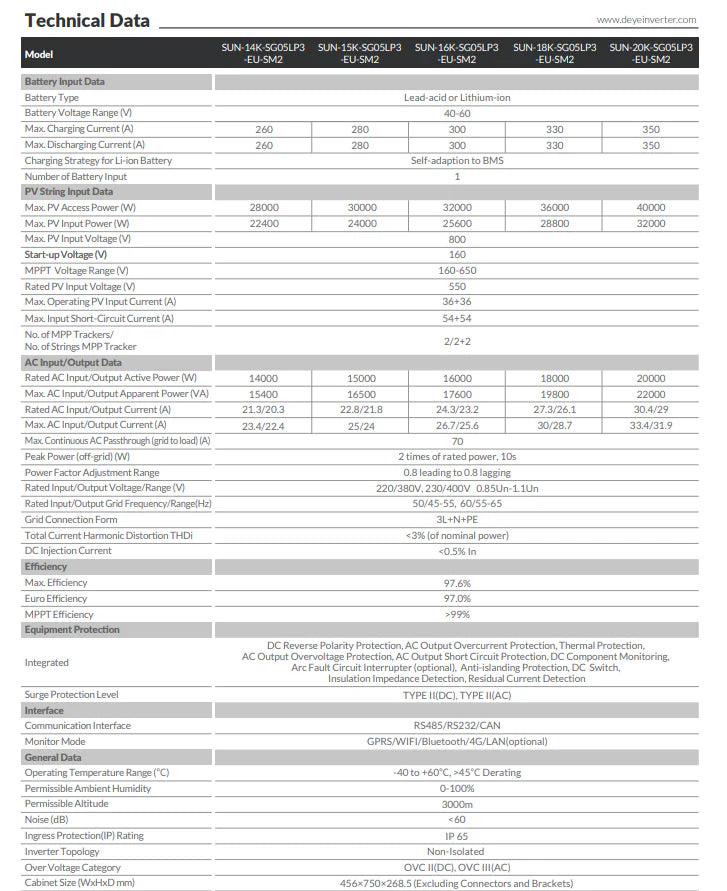

Technical Data:
Battery Input Data
Battery Type : Lead-acid or Lithium-ion
Battery Voltage Range (V) : 40-60
Max. Charging Current (A) : 280
Max. Discharging Current (A) : 280
Charging Strategy for Li-ion Battery : Self-adaption to BMS
Battery Voltage Range (V) : 40-60
Max. Charging Current (A) : 280
Max. Discharging Current (A) : 280
Charging Strategy for Li-ion Battery : Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W) : 30000
Max. PV Input Power (W) : 24000
Max. PV Input Voltage (V) : 800
Start-up Voltage (V) : 160
MPPT Voltage Range (V) : 160-650
Rated PV Input Voltage (V) : 550
Max. Operating PV Input Current (A) :36+36
Max. Input Short-Circuit Current (A) : 54+54
No. of MPP Trackers/ No. of Strings MPP Tracker : 2/2+2
Size :
456×750×268.5 (Excluding Connectors and Brackets)
51.9
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
