8KW MPPT Deye Load Shedding Deye 11.8 KWh Backup Power Combo Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
8KW MPPT Deye Load Shedding Deye 11.8 KWh Backup Power Combo Kit
HYBRID INVERTER SOLAR KIT COMBO

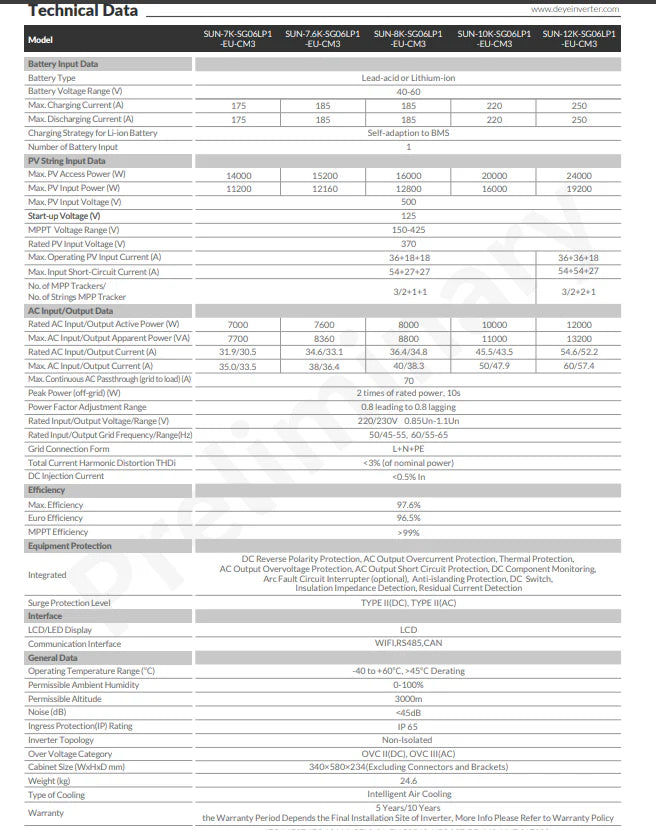

Inverter Specifications:
-Colorful touch LCD, IP65 protection degre
-AC couple to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
-operation; Support multiple batteries parallel
-Max. charging/discharging current of 250A
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator
Battery Specifications:
Deye 11.8Kw Lithium Battery SE-F12C
- High Energy Capacity: 11.8 kWh nominal energy for reliable storage
- Scalable Design: Supports up to 64 units in parallel, expanding storage to 18 MWh
- Advanced Lithium-Ion Technology: Safe and durable LiFePO4 battery chemistry
- Long Lifespan: Over 6,000 charge cycles at 80% Depth of Discharge
- Durable Housing: IP21 rating with wall-mounted or stack-mounted installation options
- Smart Monitoring: Bluetooth APP for real-time performance monitoring and system control
- Wide Temperature Range: Operates from -20°C to 55°C for various environments
- Compact and Lightweight: Dimensions of 400 × 583 × 232 mm and 78 kg weight
| Model | SE-F12 |
| Battery Chemistry | LiFePO4 |
| Capacity | 230 Ah |
| Scalability | Max. 32 pcs in parallel |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V ~ 57.6 V |
| Nominal Energy | 11.8 kWh |
| Weight Approximate | 84 kg |
| Dimension（W×H×D） | 400 × 559 × 233 mm |

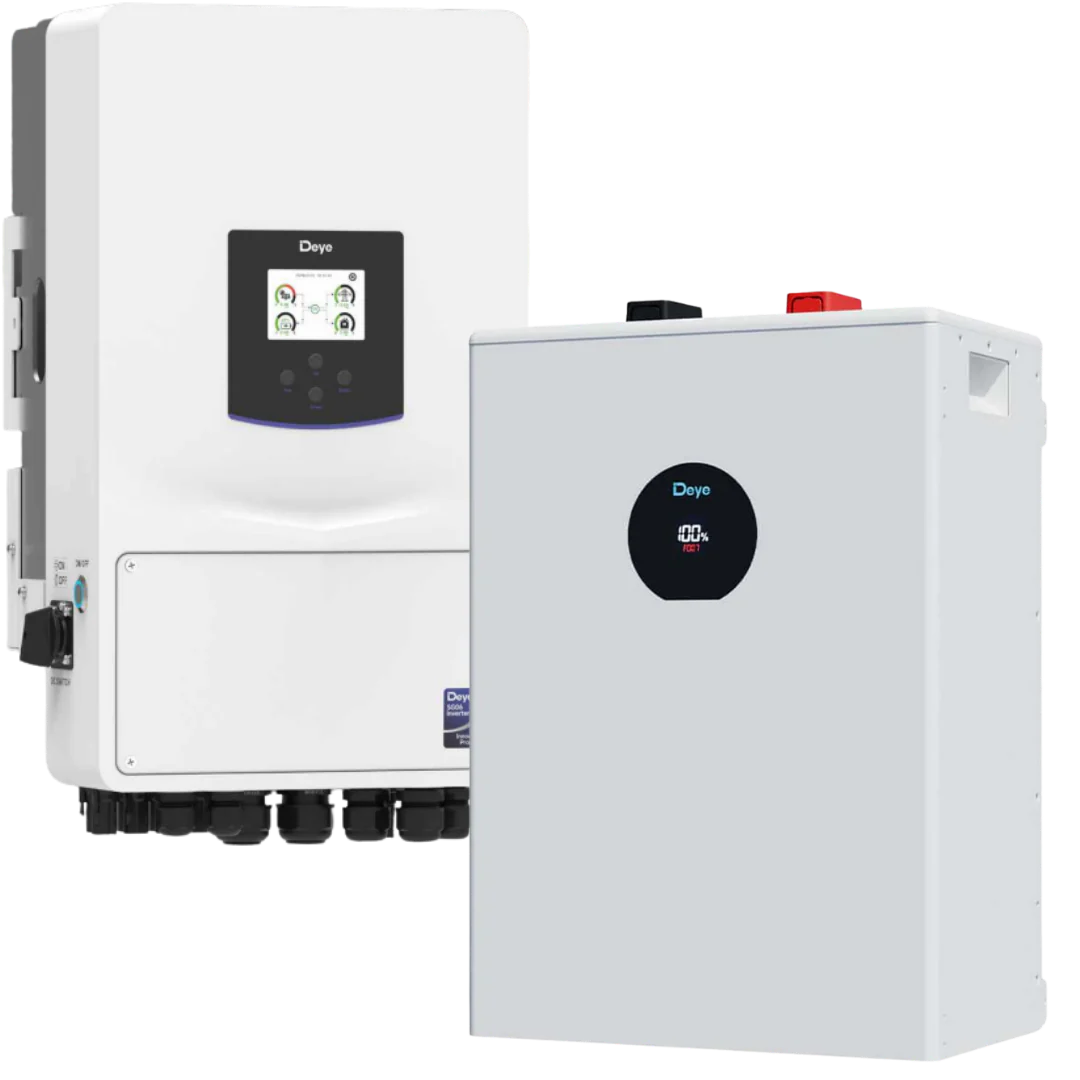

Combo includes:
-
1x Deye 8KW Hybrid Inverter SUN-8K-SG06LP1 -EU-CM3
(5 Years Warranty) -
1x Deye 11.8Kw Lithium Battery SE-F12C
(10 Years Warranty) - Battery cables and brackets included
