8KW MPPT Deye Load Shedding 2x Dyness 5.12 KWh Backup Power Combo Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
8KW MPPT Deye Load Shedding 2x Dyness 5.12 KWh Backup Power Combo Kit
HYBRID INVERTER SOLAR KIT COMBO

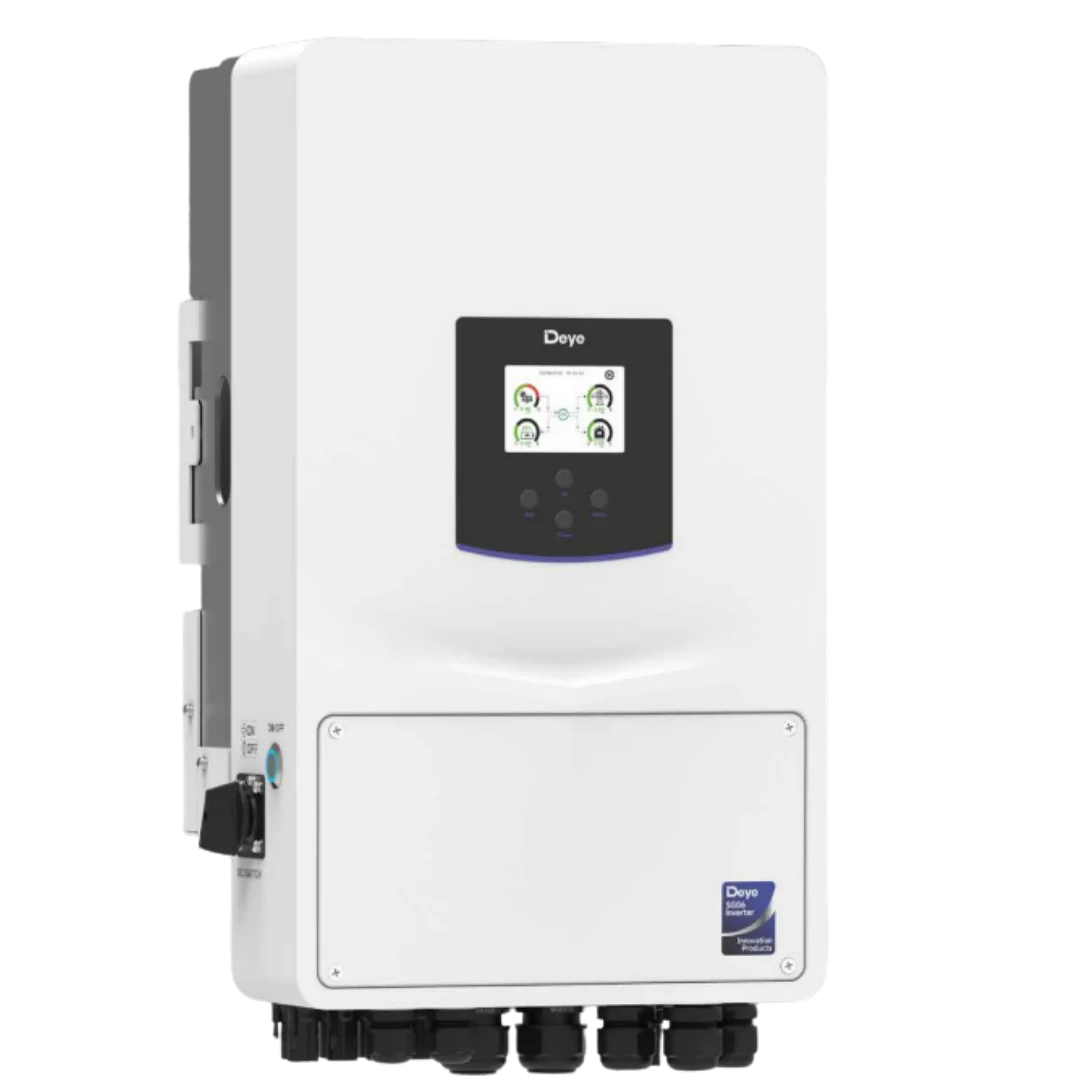

Inverter Specifications:
-Colorful touch LCD, IP65 protection degre
-AC couple to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
-operation; Support multiple batteries parallel
-Max. charging/discharging current of 250A
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator

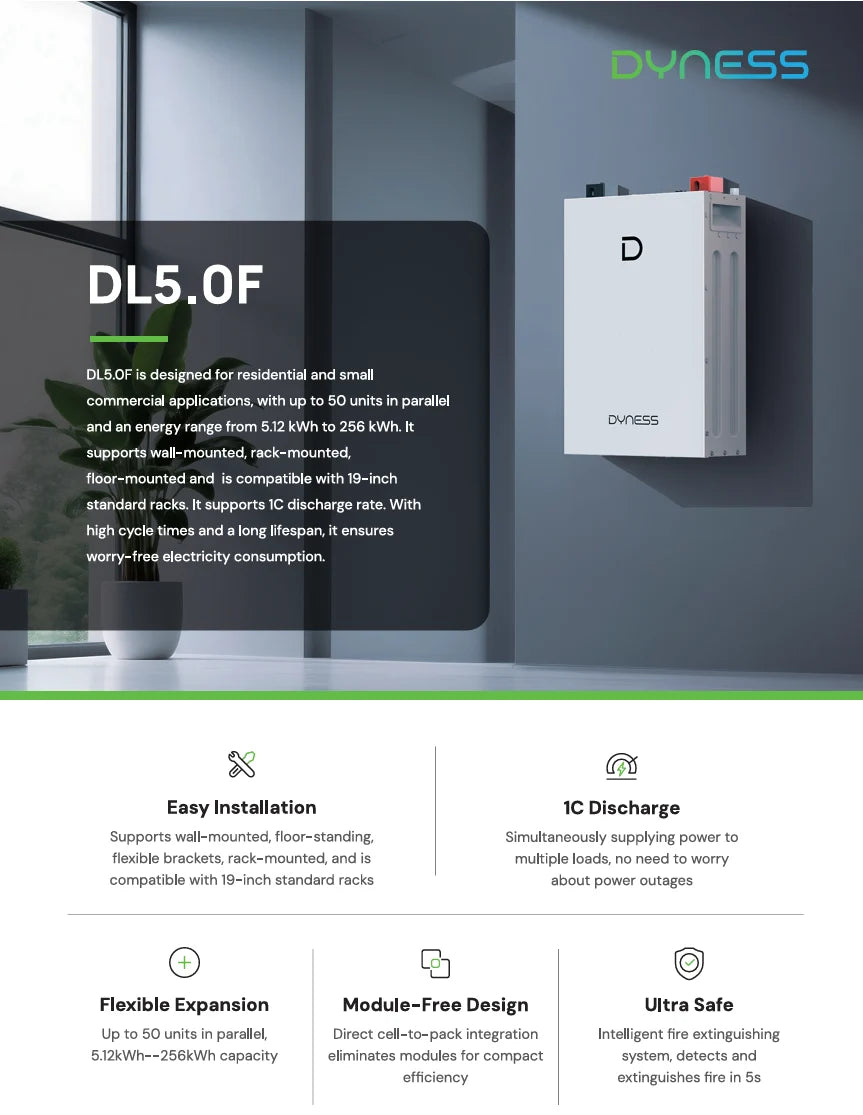

Battery Specifications:
YNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery (100AH 51.2V )
Dyness: Battery Lithium Ion DL5.0F 5.12KWH 51.2V 100Ah IP20
Elevate your energy storage capability with this advanced, high-performance lithium battery solution, engineered for maximum flexibility, safety, and power output. Designed to adapt seamlessly to your space, it supports Wall Mount, Floor Mount, and Rack Mount configurations while streamlining setup through an easy installation process using only a single bracket.
Product Features:
-
Supports Wall Mount, Floor Mount & Rack Mount
-
1C Discharge
-
Connect up to 50 Units in Parallel
-
Module Free Design
-
Integrated Aerosol Fire Suppression
-
IP20 Ingress Protection
-
Wide Compatibility
-
8000 Cycle Life Span
-
Backward Compatible with DL5.0C Range (Without LINK Module)
-
95% DOD
- Easy Installation using only 1 Bracket

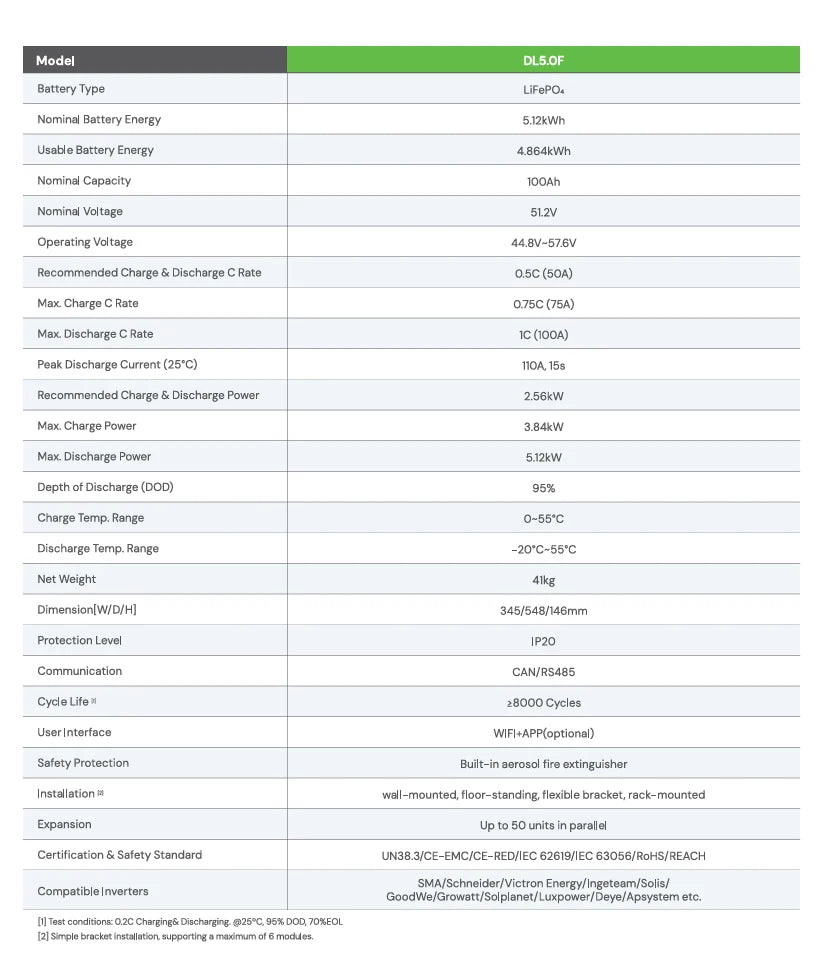

- Model: DL5.0F
- Battery Type: LiFePO4
- Nominal Battery Energy: 5.12kWh
- Usable Battery Energy: 4.864kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (50A)
- Max. Charge C Rate: 0.75C (75A)
- Max. Discharge C Rate: 1C (100A)
- Peak Discharge Current (25°C): 110A, 15s
- Recommended Charge & Discharge Power: 2.56kW
- Max. Charge Power: 3.84kW
- Max. Discharge Power: 5.12kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0~55°C
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 41kg
- Dimension [W/D/H]: 345/548/146mm
- Protection Level: IP20
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP (optional)
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: wall-mounted, floor-standing, flexible bracket, rack-mounted
- Expansion: Up to 50 units in parallel
- Certification & Safety Standard: UN38.3/CE-EMC/CE-RED/IEC 62619/IEC 63056/RoHS/REACH
- Compatible Inverters: SMA/Schneider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/Deye/Apsystem etc.

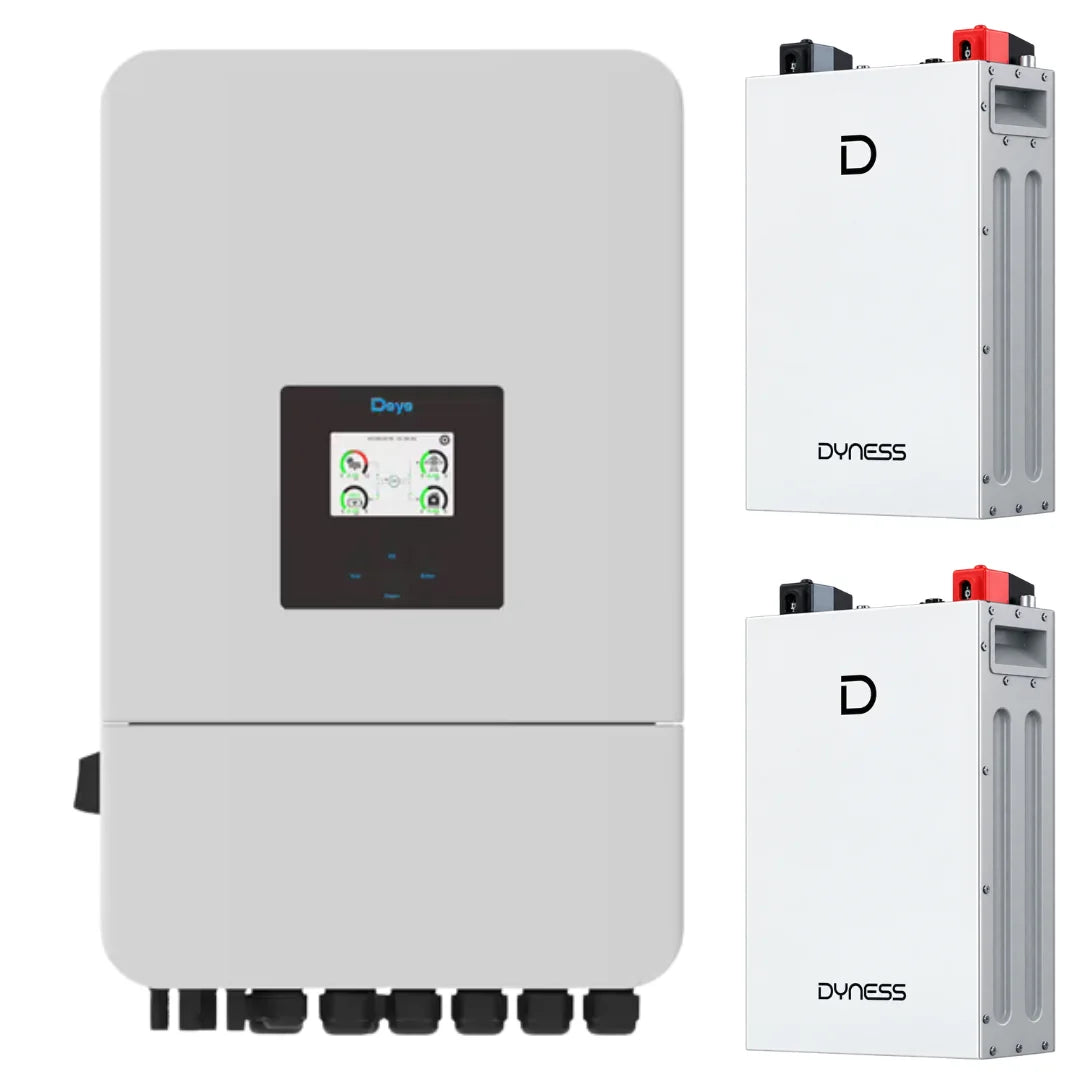

Combo includes:
-
1x Deye 8KW Hybrid Inverter SUN-8K-SG06LP1 -EU-CM3
(5 Years Warranty) -
2x DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery (100AH 51.2V )
(7 Years Warranty) - Battery cables and brackets included
