6KW MPPT Growatt Shoto 5.12 Lithium Battery Combo Backup Power Kit 6x Solar 460w Solar Panels Mono
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Hybrid Inverter Solar Kit Combo
6KW MPPT Growatt Shoto 5.12 Lithium Battery Combo Backup Power Kit 6x Solar 460w Solar Panels Mono
INVERTER SPECIFICATIONS:
Features:
· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
transfer switch
WIFI Dongle (INCLUDED)
Inverter Output:
- Battery Voltage: 48VDC
- Battery Type: Lithium/Lead-Acid
- Rated Power: 6000VA/6000W
- Parallel Capability: Yes, 6 units maximum
- Surge Power: 12000VA
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
Solar Charger:
- Maximum PV Array Power: 8000W
- MPPT Range @ Operating Voltage: 120VDC – 450VDC
- Max. Input current per MPP tracker: 16A
- Maximum Solar Charger Current: 100A
- Number of Independent MPP Trackers/
Strings Per MPP Tracker : 2/1
AC Charger:
- Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)
- Wifi Dongle Included
Battery Specifications:
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 100Ah
- Energy Storage: 5.12kWh
- Cycle Life: >6000 cycles at 80% DoD
- Max Charge Voltage: 54V
- Discharge Cutoff Voltage: 42V
- Maximum Charge/Discharge Current: 100A
- Round-Trip Efficiency: >95%
- Communication Protocols: RS485, CAN
- Operating Temperature: -20°C to 55°C
- Scalability: Parallel & Series connections supported

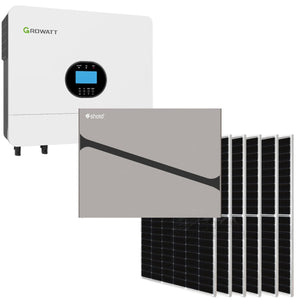

Combo includes:
- 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES (2 Years Warranty)
- Growatt Wifi Dongle
- 1x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10 years warranty)
- 6x Canadian Solar 460w Solar Mono Panel (12 Year Product Warranty)
- Battery cables included
