5KW MPPT Growatt Lite Dyness 5.12 Lithium Battery Combo Backup Power Kit
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Hybrid Inverter Solar Kit Combo
5KW MPPT Growatt Lite Dyness 5.12 Lithium Battery Combo Backup Power Kit

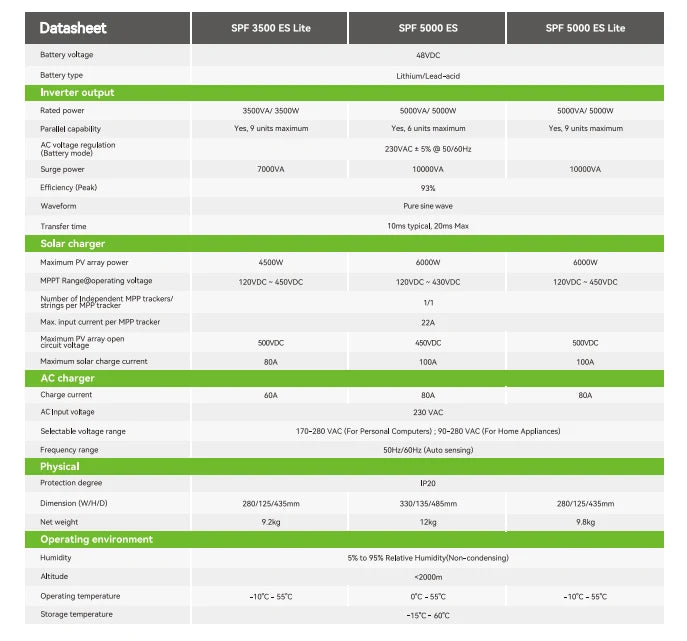

INVERTER SPECIFICATIONS:
Key smart features include:
-
Works with or without battery
-
PV and grid power supply loads jointly when solar energy is sufficient
-
Equalization charging function for improved battery health
-
Configurable inverter operating modes
Performance & Scalability
-
Max PV Array Power: 6000W
-
MPPT Operating Voltage: 120–450VDC
-
Max PV Open Circuit Voltage: 500VDC
-
Max Solar Charge Current: 100A
-
Parallel capability of up to 9 units
WIFI Dongle (INCLUDED)

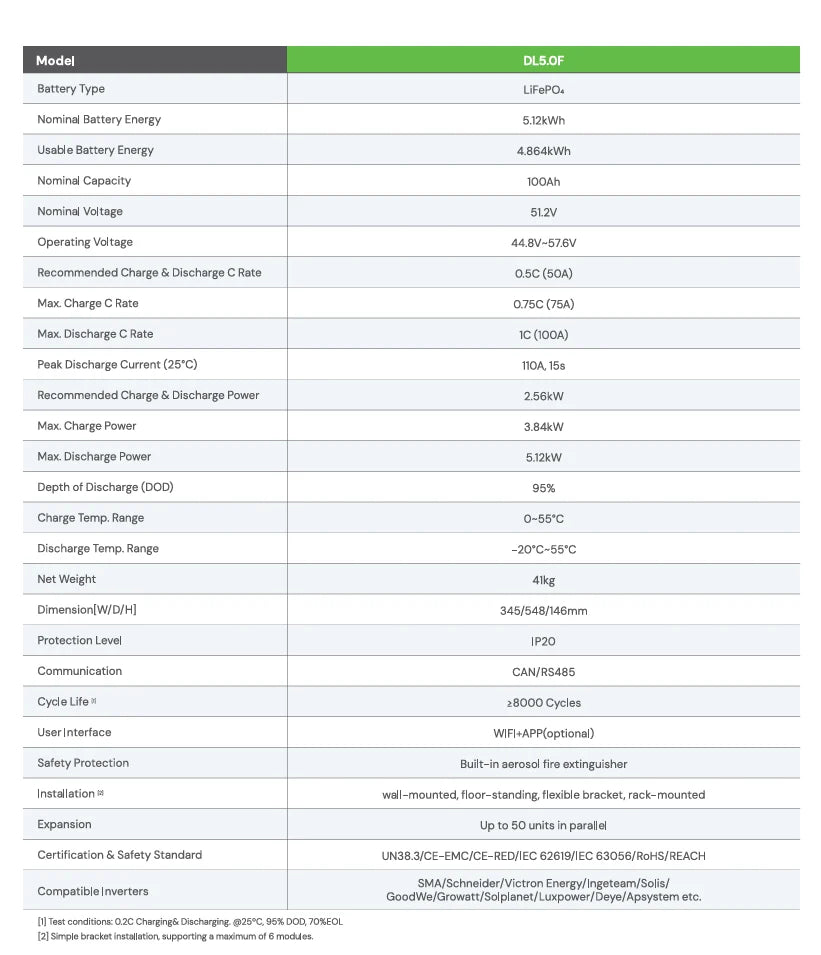

Battery Specifications:
- Model: DL5.0F
- Battery Type: LiFePO4
- Nominal Battery Energy: 5.12kWh
- Usable Battery Energy: 4.864kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V~57.6V
- Recommended Charge & Discharge C Rate: 0.5C (50A)
- Max. Charge C Rate: 0.75C (75A)
- Max. Discharge C Rate: 1C (100A)
- Peak Discharge Current (25°C): 110A, 15s
- Recommended Charge & Discharge Power: 2.56kW
- Max. Charge Power: 3.84kW
- Max. Discharge Power: 5.12kW
- Depth of Discharge (DOD): 95%
- Charge Temp. Range: 0~55°C
- Discharge Temp. Range: -20°C~55°C
- Net Weight: 41kg
- Dimension [W/D/H]: 345/548/146mm
- Protection Level: IP20
- Communication: CAN/RS485
- Cycle Life: ≥8000 Cycles
- User Interface: WIFI+APP (optional)
- Safety Protection: Built-in aerosol fire extinguisher
- Installation: wall-mounted, floor-standing, flexible bracket, rack-mounted
- Expansion: Up to 50 units in parallel
- Certification & Safety Standard: UN38.3/CE-EMC/CE-RED/IEC 62619/IEC 63056/RoHS/REACH
- Compatible Inverters: SMA/Schneider/Victron Energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/Deye/Apsystem etc.

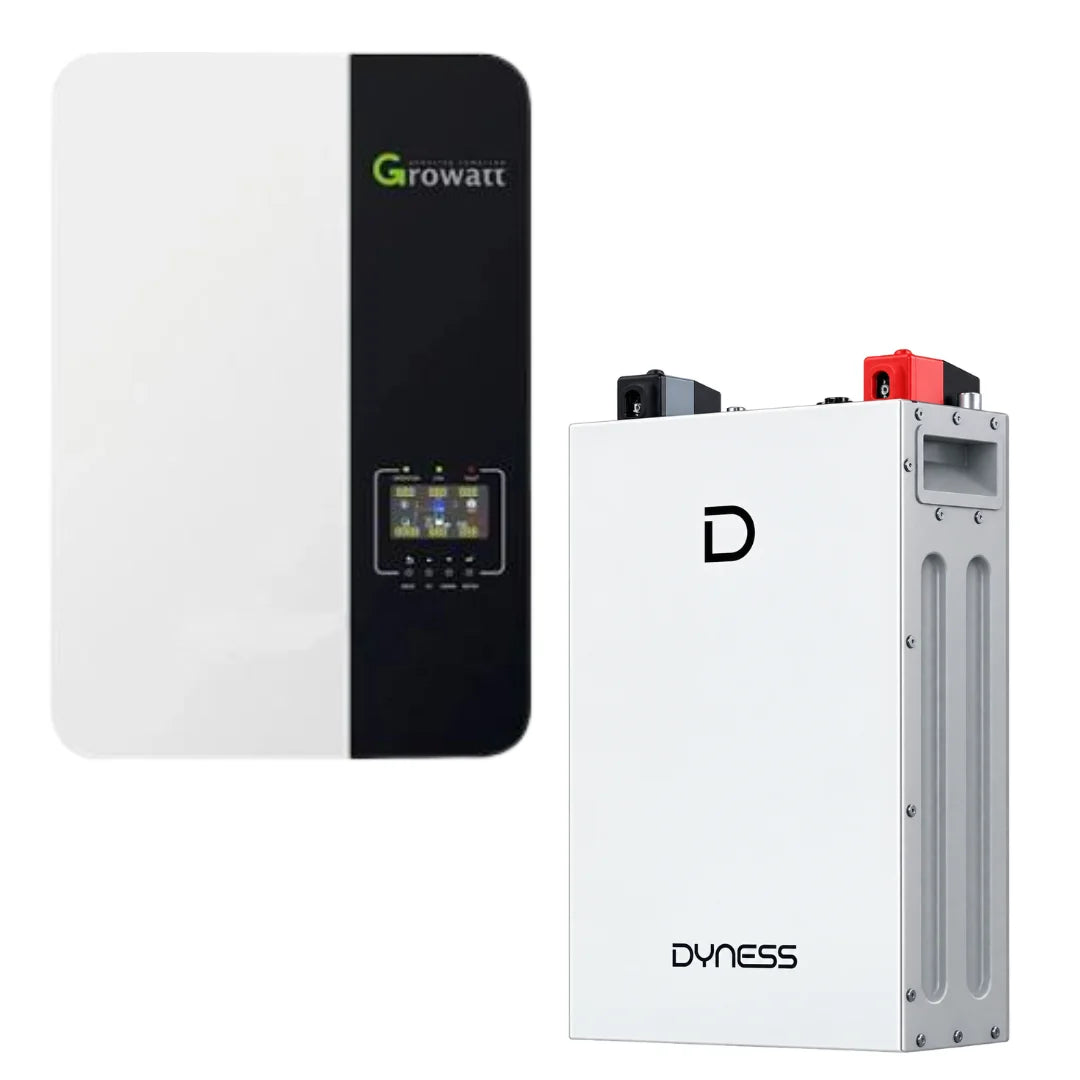

Combo includes:
- 1x GrowattInverter 5kW 48VDC SPF 5000 ES LITE (2 Years Warranty)
- Growatt Wifi Dongle

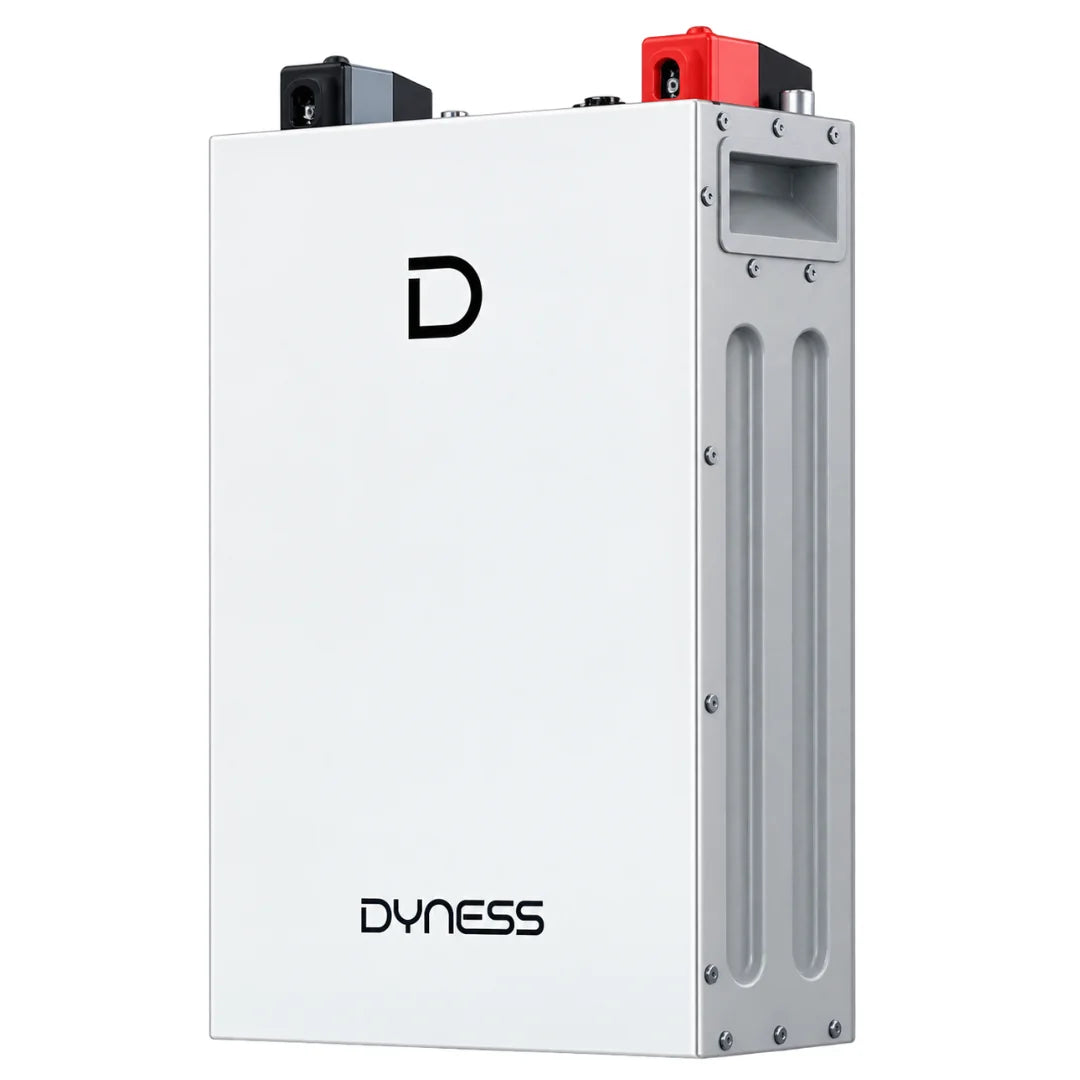

- 1x DYNESS Lithium Battery DL5.0F 5.12kWh LV Lithium Battery (100AH 51.2V ) (7 Years Warranty)
- Battery cables included
