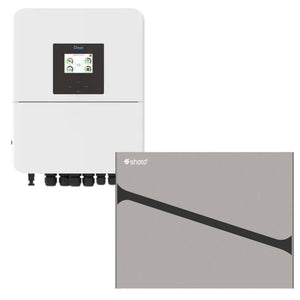

5KW MPPT Deye Load Shedding Shoto 5.12 KWh Combo Backup Power Kit+Wifi
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
5KW MPPT Deye Load Shedding Shoto 5.12 KWh Combo Backup Power Kit+Wifi
HYBRID INVERTER SOLAR KIT COMBO

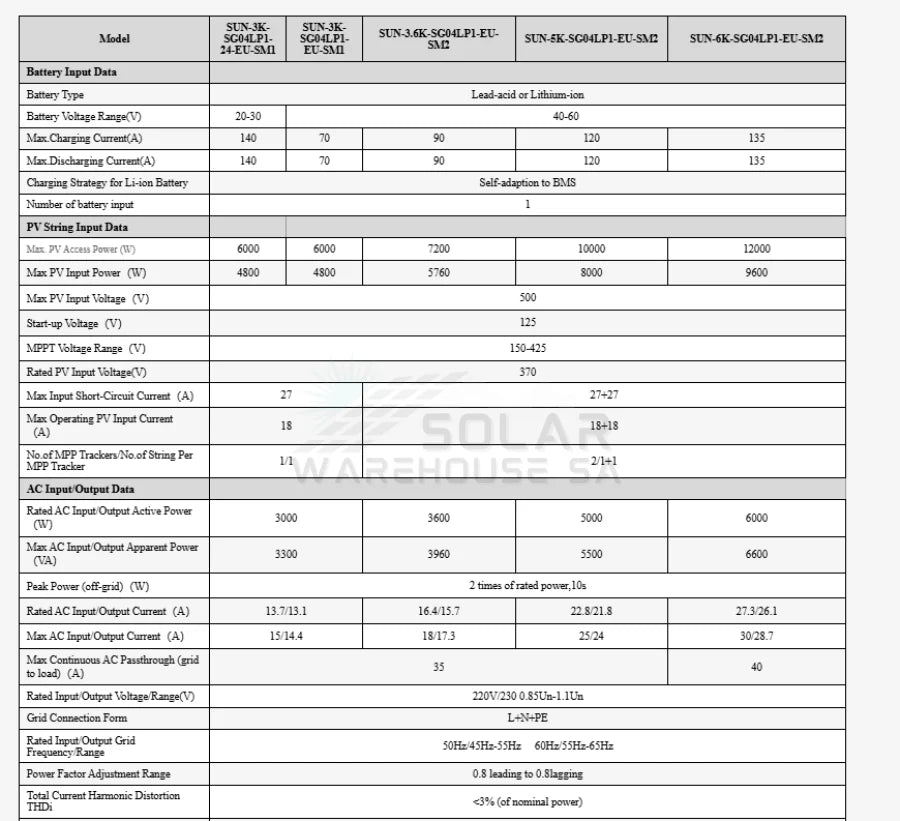

Inverter Specifications:
Deye 5kw hybrid inverter (SUN-5K-SG04LP1-EU-SM2)
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power（W）: 8000
Max PV Input Voltage（V): 500
Start-up Voltage（V）: 125
MPPT Voltage Range（V）: 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current（A）: 27+27
Max Operating PV Input Current（A）: 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
| Height (mm) | 470 |
| Width (mm) | 376 |
| Depth (mm) | 241.5 |
| Weight (kg) | 19 |

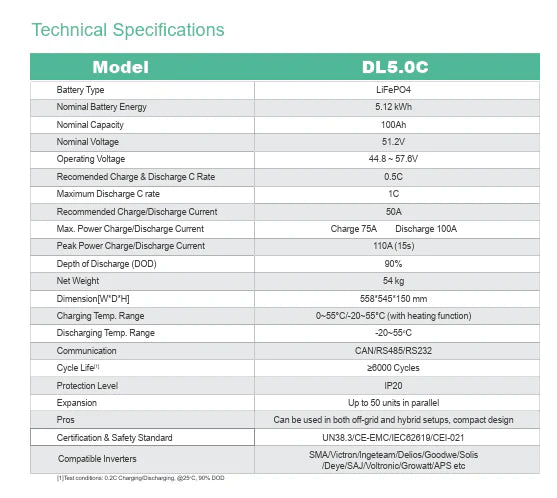

Battery Specifications:
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 100Ah
- Energy Storage: 5.12kWh
- Cycle Life: >6000 cycles at 80% DoD
- Max Charge Voltage: 54V
- Discharge Cutoff Voltage: 42V
- Maximum Charge/Discharge Current: 100A
- Round-Trip Efficiency: >95%
- Communication Protocols: RS485, CAN
- Operating Temperature: -20°C to 55°C
- Scalability: Parallel & Series connections supported
Combo includes:
-
1x Deye 5kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty) -
1x Shoto Lithium Iron Phosphate LiFePO4 51.2V 5.12KWH HP10-box5 Pro (10-years warranty)
- Battery cables and brackets included
