14KVA Luxpower 48V Single-Phase Eco Hybrid Inverter (SNA2-EU-LT-14K)
Lead Time 2-3 Business days
Available online & in-store
Delivery estimated within 20/11 and 29/11
Luxpower 14kW Single-Phase Eco Hybrid Inverter SNA2-EU-LT-14K | 48V Solar Inverter
Product Description
The Luxpower 14kW Single-Phase Eco Hybrid Inverter SNA2-EU-LT-14K is a powerful and efficient hybrid inverter designed for larger residential, commercial, and backup solar installations. With a strong 14kW output, high PV input capacity, 48V/51.2V battery compatibility, and advanced hybrid working modes, this inverter is ideal for customers who need a reliable solar and battery storage solution.
This inverter supports up to 24kW of PV input power with 2 independent MPPTs, allowing flexible solar panel configuration and improved energy production across different roof layouts. It also supports a maximum charging and discharging current of 250A, helping deliver strong battery backup performance when paired with the correct lithium or lead-acid battery bank.
The Luxpower SNA2-EU-LT-14K is built with a lighter, compact design for easier installation and supports up to 16 units in parallel for on-grid and off-grid applications. With intelligent operating modes, it can help reduce energy costs, improve solar self-consumption, and deliver a quicker return on investment.
It also includes a separate generator port for auto start-stop, working with an existing grid-tied system, and smart load management, making it a flexible inverter option for modern solar installations.
Key Features
14kW single-phase eco hybrid inverter
Max. PV input power of 24kW
2 independent MPPT inputs
Compatible with lithium-ion and lead-acid batteries
Rated battery voltage: 48V / 51.2V
Max. charging and discharging current of 250A
Supports up to 16 units in parallel
Suitable for on-grid and off-grid operation
Lite design for easier installation
Supports hybrid working modes
Intelligent operating mode to help lower energy costs
Separate generator port
Generator auto start-stop support
Can work with existing grid-tied systems
Smart load management support
Compact wall-mounted design
Benefits
Suitable for larger homes and businesses with higher power demand
Allows a large solar array for improved daytime generation
Supports strong battery backup performance
Flexible PV design with dual MPPT inputs
Can be expanded by paralleling multiple units
Helps improve self-consumption and reduce grid reliance
Generator integration adds extra backup flexibility
Easier installation thanks to compact and lightweight design
Ideal Applications
The Luxpower 14kW SNA2-EU-LT-14K is ideal for:
Large residential solar systems
High-consumption households
Small businesses and offices
Backup power systems
Off-grid and grid-assisted installations
Solar systems with battery storage
Generator-assisted backup setups
Sites requiring future expansion
Existing grid-tied solar system upgrades

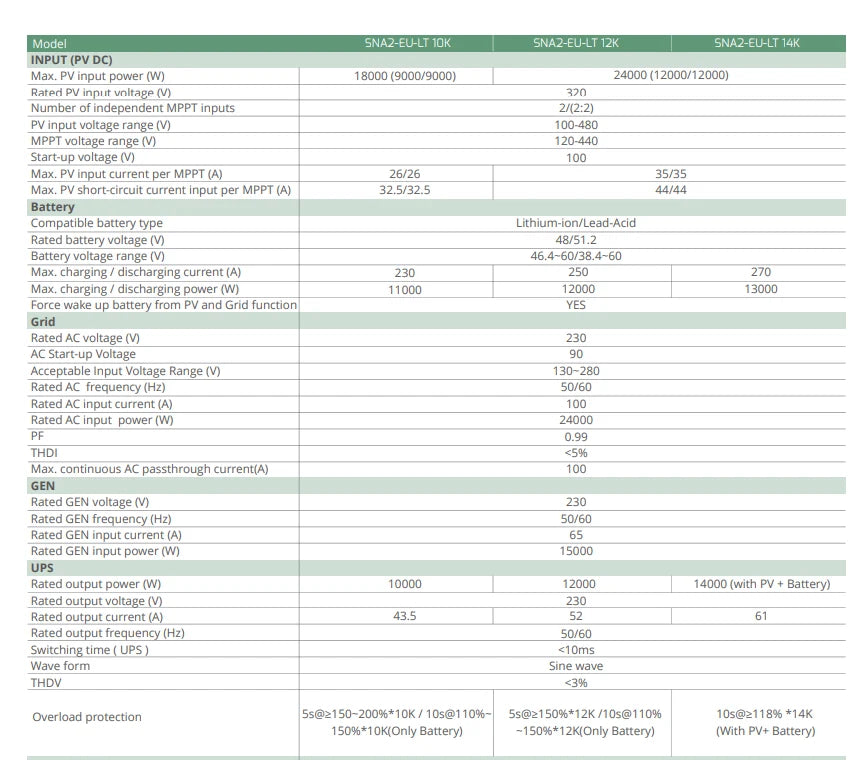

Technical Specifications
Input, PV DC
| Specification | Details |
|---|---|
| Max. PV Input Power | 24,000W, 12,000W / 12,000W |
| Rated PV Input Voltage | 320V |
| Number of Independent MPPT Inputs | 2 / 2:2 |
| PV Input Voltage Range | 100V – 480V |
Grid Data
| Specification | Details |
|---|---|
| Rated AC Voltage | 230V |
| AC Start-up Voltage | 90V |
| Acceptable Input Voltage Range | 130V – 280V |
Battery Data
| Specification | Details |
|---|---|
| Compatible Battery Type | Lithium-ion / Lead-Acid |
| Rated Battery Voltage | 48V / 51.2V |
| Battery Voltage Range | 46.4V – 60V / 38.4V – 60V |
| Max. Charging / Discharging Current | 250A |

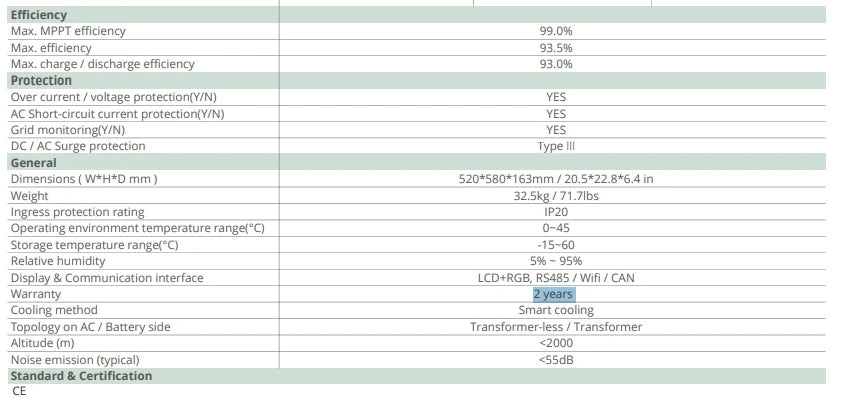

General Specifications
| Specification | Details |
|---|---|
| Brand | Luxpower |
| Model | SNA2-EU-LT-14K |
| Inverter Type | Single-Phase Eco Hybrid Inverter |
| Rated Power | 14kW |
| Max. Parallel Units | Up to 16 units |
| Hybrid Working Modes | Supported |
| Generator Port | Separate Gen Port |
| Dimensions | 520 × 580 × 163mm |
| Dimensions, Inches | 20.5 × 22.8 × 6.4 in |
| Weight | 32.5kg / 71.7lbs |
| Warranty | 2 Years |
Warranty
2-year warranty
